SIMPLICITY OF OPERATION.

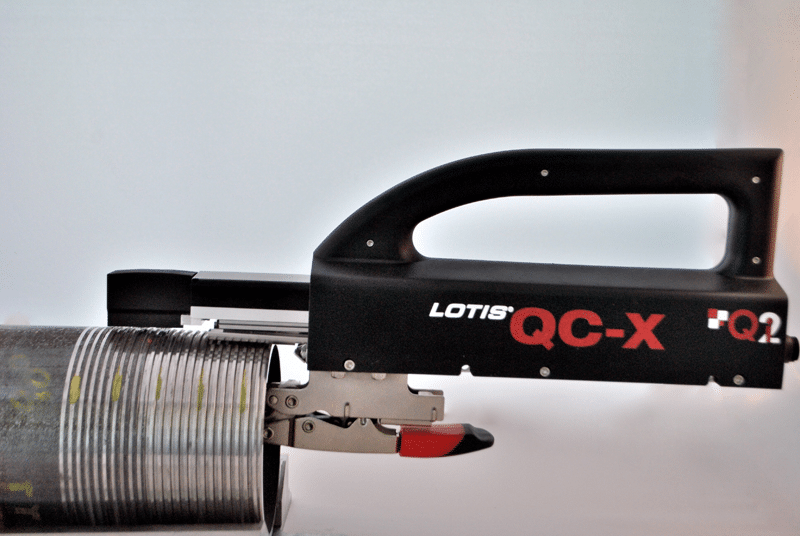

The LOTIS ® QC-X Thread Profiler is designed to function in a
thread-cutting environment at a workstation.
Hardware and software have been engineered
for ease of use by any operator.



Your New Process with QC-X:

- An operator can attach, scan, and unattach in less than 45 seconds

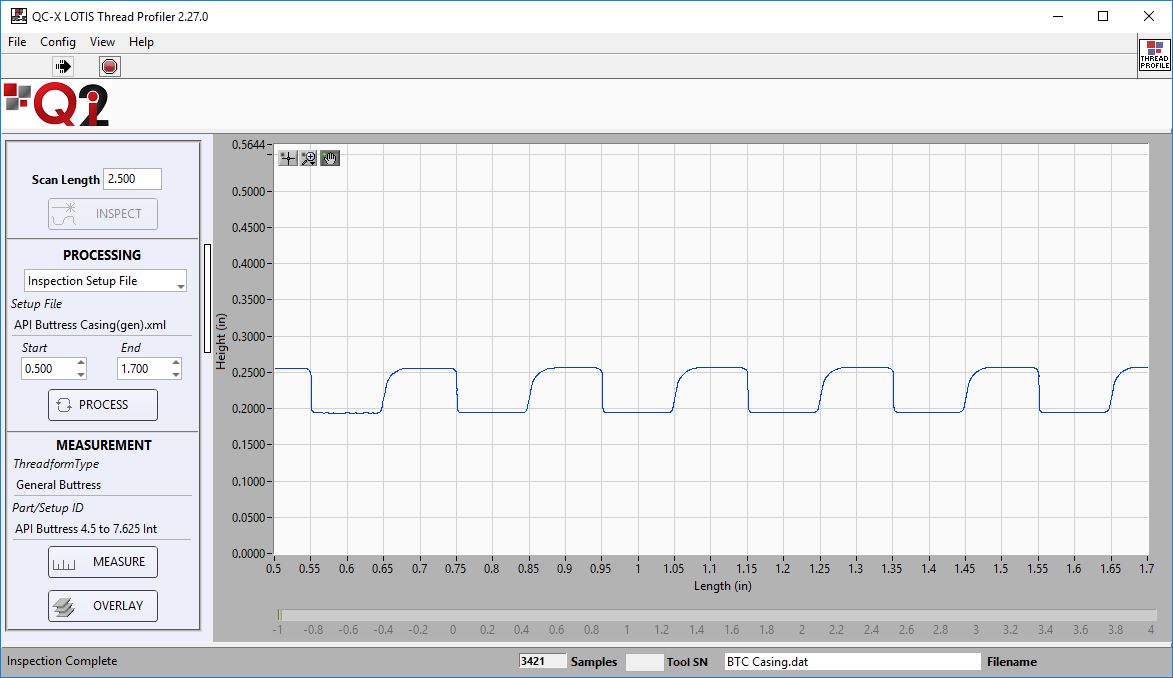

- The LOTIS ® QC-X captures measurement of Height, Lead, Cumulative Lead, and Profile Geometry
- Superimposes an electronic mold onto an electronic overlay



APPLICATION

End the need to idle machines and workers
Keep thread inspection at point of production

-Inspects API, Semi-Premium and Premium Threads

-Dual laser system can be mounted in any orientation

-Quick and easy to learn

-Reduces human factors

-Digital profile archived for traceability

-Speeds up shift start time

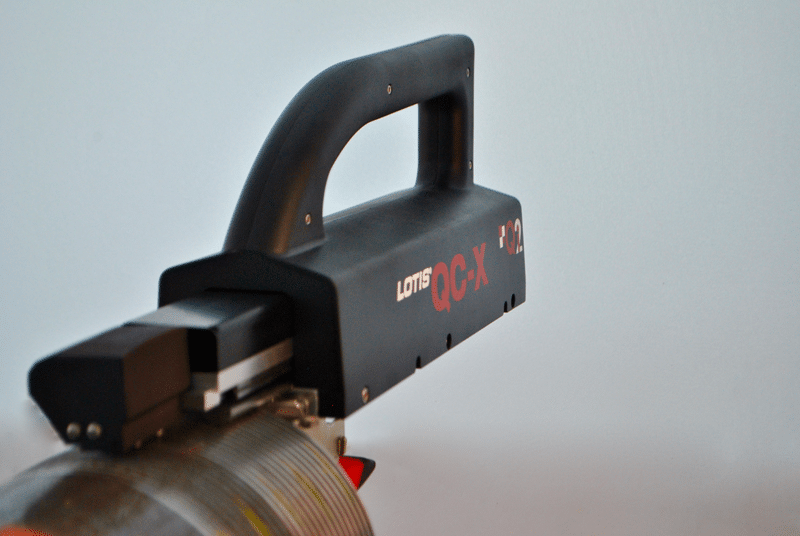

Traditional thread measurement requires multiple devices and expert interpretation that frequently stops production altogether. LOTIS® QC-X thread-profiling system uses rapid, non-contact laser scanning contained in one portable device. Necessitating no special operator skills, LOTIS® QC-X optimizes thread cutting process control and increases the frequency of First Article Inspection (FAI) in a self-contained, user-friendly system. In a 30 second scan cycle, the revolutionary thread measurement system obtains nearly instantaneous data on thread pitch, thread height, flank angles, bore taper, and corner radii with an accuracy of +/- 0.00023”. The application of this advanced laser measurement system reduces inspection cost, time, and error in interpretation for improved quality control.



Features and Benefits of Use

• Profile threads in a 30 second scan cycle
• Gives QA/QC managers improved quality control of threading operations
• Increase frequency of article inspection
• Optimize thread cutting process control
•  Self-contained system – scan to reports – no additional equipment required
• Easy to learn and easier to use
• No special operator skills required
